External Web Search API

This option allows you to connect Open WebUI to your own self-hosted web search API endpoint. This is useful if you want to:

• Integrate a search engine not natively supported by Open WebUI.
• Implement custom search logic, filtering, or result processing.
• Use a private or internal search index.

Open WebUI Setup

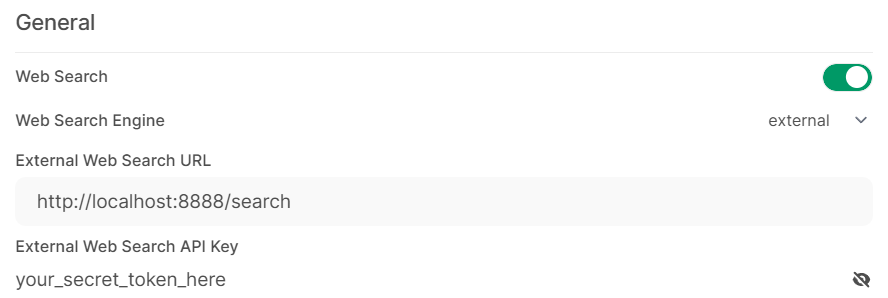

1. Navigate to the Open WebUI Admin Panel.
2. Go to the Settings tab and then select Web Search.
3. Toggle Enable Web Search to the on position.
4. Set Web Search Engine from the dropdown menu to external.
5. Fill External Search URL with the full URL of your custom search API endpoint (e.g., http://localhost:8000/search or https://my-search-api.example.com/api/search).
6. Fill External Search API Key with the secret API key required to authenticate with your custom search endpoint. Leave blank if your endpoint doesn't require authentication (not recommended for public endpoints).
7. Click Save.

API Specification

Open WebUI will interact with your External Search URL as follows:

• Method: POST

• Headers:

  • Content-Type: application/json
  • Authorization: Bearer <YOUR_EXTERNAL_SEARCH_API_KEY>

• Request Body (JSON):

  {
    "query": "The user's search query string",
    "count": 5 // The maximum number of search results requested
  }
  • query (string): The search term entered by the user.
  • count (integer): The suggested maximum number of results Open WebUI expects. Your API can return fewer results if necessary.

• Expected Response Body (JSON): Your API endpoint must return a JSON array of search result objects. Each object should have the following structure:

  [
    {
      "link": "URL of the search result",
      "title": "Title of the search result page",
      "snippet": "A brief description or snippet from the search result page"
    },
    {
      "link": "...",
      "title": "...",
      "snippet": "..."
    }
    // ... potentially more results up to the requested count
  ]
  • link (string): The direct URL to the search result.
  • title (string): The title of the web page.
  • snippet (string): A descriptive text snippet from the page content relevant to the query.

  If an error occurs or no results are found, your endpoint should ideally return an empty JSON array [].

Example Implementation (Python/FastAPI)

Here is a simple example of a self-hosted search API using Python with FastAPI and the duckduckgo-search library.

import uvicorn
from fastapi import FastAPI, Header, Body, HTTPException
from pydantic import BaseModel
from duckduckgo_search import DDGS

EXPECTED_BEARER_TOKEN = "your_secret_token_here"

app = FastAPI()


class SearchRequest(BaseModel):
    query: str
    count: int


class SearchResult(BaseModel):
    link: str
    title: str | None
    snippet: str | None


@app.post("/search")
async def external_search(
    search_request: SearchRequest = Body(...),
    authorization: str | None = Header(None),
):
    expected_auth_header = f"Bearer {EXPECTED_BEARER_TOKEN}"
    if authorization != expected_auth_header:
        raise HTTPException(status_code=401, detail="Unauthorized")

    query, count = search_request.query, search_request.count

    results = []
    try:
        with DDGS() as ddgs:
            search_results = ddgs.text(
                query, safesearch="moderate", max_results=count, backend="lite"
            )

        results = [
            SearchResult(
                link=result["href"],
                title=result.get("title"),
                snippet=result.get("body"),
            )
            for result in search_results
        ]

    except Exception as e:
        print(f"Error during DuckDuckGo search: {e}")

    return results


if __name__ == "__main__":
    uvicorn.run("main:app", host="0.0.0.0", port=8888)
